pure steam
generator

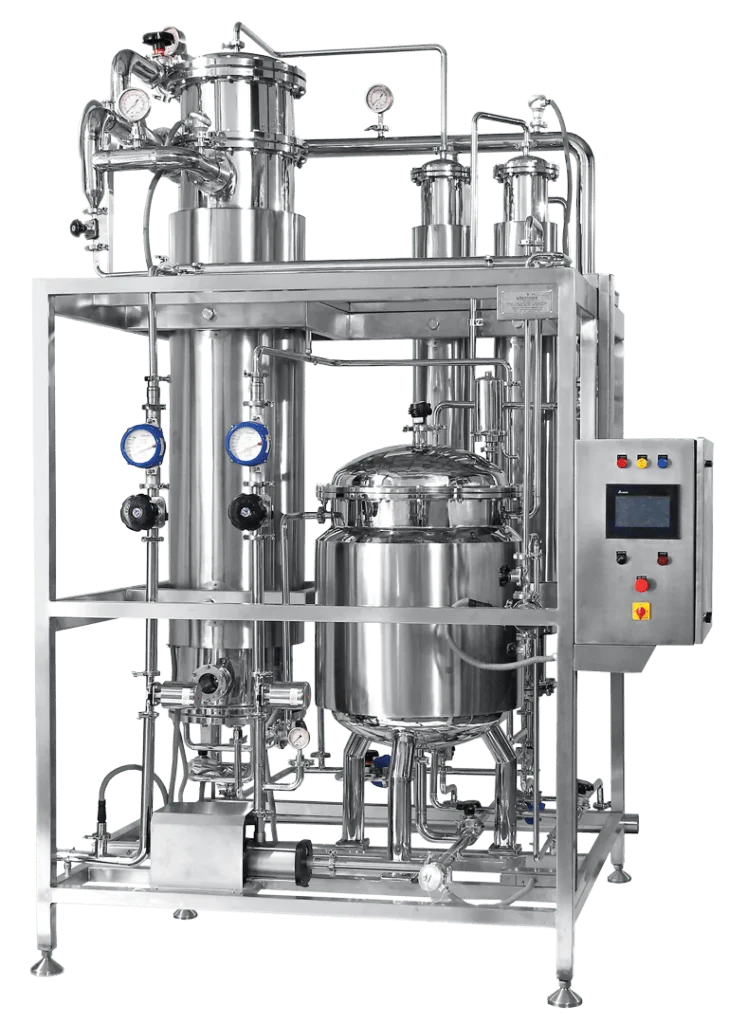

The pure steam generator produced by PSG is used for sterilisation in storage tanks fermenters, reactors, pipelines & autoclaves.

It is also used for humidification of sterile area and can be used wherever sterilization is required.

APPLICATIONS

Pure Steam Generator (PSG) produces Pure Steam.
Pure Steam is required for

• In Situ Sterilization of any equipment

• Autoclave Sterilization

Pure Steam Generator System Features

• Capacity varies from 5 to 3,000 Kg per hour

• Designed to produce pure steam @ 3 kg/cm² pressure

• Designed and manufactured as per ASME BPE and cGMP guidelines

• The Pure Steam generated meets EN 285, USP, EP, BP and IP standards

• All heat exchange tubes will be seamless quality

• Phase separation is based on falling film evaporator technology

• Specially designed and constructed to remove pyrogen / endotoxin

• Designed and constructed to achieve 100 % drainability

• The unit and all its components are mounted on AISI 304 stainless steel skid

• All wetted parts are made from AISI 316L stainless steel and rest are made of AISI 304 stainless steel

• All contact parts are finished to electro polished to Ra < 0.4 and are crevice free

• IPC & PLC based 21 CFR part 11 complied fully automatic control panel with online printing facility

• Double tube sheet construction for the first column, where boiler steam is present

• Our compact and optimised design required minimum human interference. This means low maintenance and low operational cost

• Complete set of documentation and certificates to ensure compliance with regulatory authority. We provide DQ, OQ, IQ, FAT & SAT. Also assist client to develop PQ
